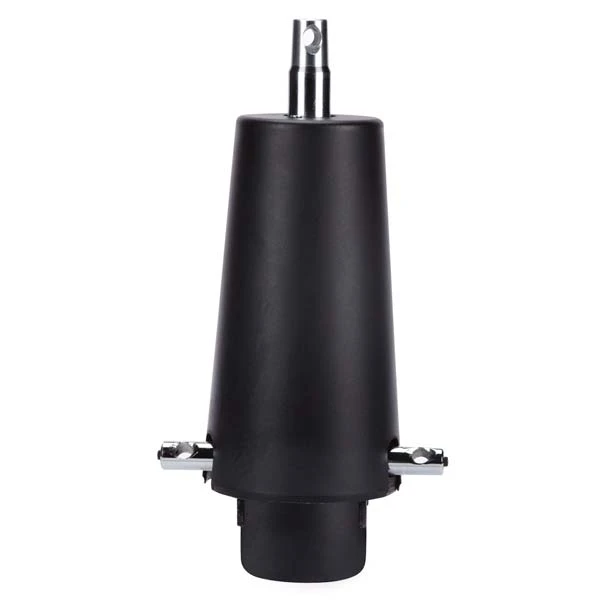

Master Equipment Replacement Hydraulic Pump TP7500/306 Black

This Master Equipment™ Replacement Hydraulic Pump is
designed specifically for our Master Equipment™ Hydraulic
Grooming Table #TP7500 and our Master Equipment™ Bone-Shaped
Hydraulic Table #TP306. Contains one hydraulic pump.

Material: Polypropylene, metal
Size: 7.87″L x 5.51″W x 14.56″H

Instructions to Replace
Hydraulic Pump

Tools needed: Wrench • Hammer • Allen Wrench

1. Pull out the screw from the inner core of the hydraulic
   pump.
2. Cover the inner core of the hydraulic pump by using the
   plastic outer casing.
3. Using the screw provided, attach the plastic outer casing
   to the inner core.

Replace the hydraulic pump.

1. Use a wrench to loosen the screw on the hydraulic
   pump.
2. Use a sharp tool to pull out the snap ring from the
   steeve of the hydraulic pump.
3. Use a hammer and metal rod to tap out the two steeves
   from the pump.
4. Take out the old hydraulic pump.
5. Use an allen wrench to take out the foot lever and the
   clamping screws.
6. Insert the new hydraulic pump into the grooming
   table.
7. Insert the two fixed staffs.
8. Insert the snap ring at the right position.
9. Encase the new foot lever into the new hydraulic
   pump.
10. The replacement is completed.
